Features OF Stability Chamber

Components of a Stability Chamber:

Application of Stability chamber

Construction

Full View Glass Door

Leveling Legs

Illumination

Trays

21 CFR PART-11 Compliance

Temperature Control:

Humidity Control:

Lighting Systems:

Airflow Systems:

Monitoring and Control Systems:

Pharmaceutical Industry:

Food Industry:

Chemical Industry:

Compliance and Standards:

ICH Guidelines:

Regulatory Requirements:

Maintenance and Calibration:

Regular Calibration:

Maintenance Checks:

Conclusion:

Service Center for stability Chamber Manufacturer,Equipment Maintenance and Repair

Specially designed chambers for Low Humidity conditions such as
• 25°C & 40%RH
• 40°C & 25%RH
• 30°C & 35%RH

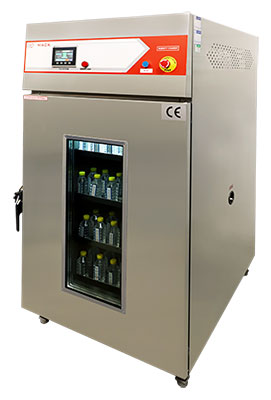

Stability Chamber Manufacturer

TECHNICAL SPECIFICATION
Temperature Range	20°C to 60°C
Humidity Range	40% RH to 85% RH
ICH Test Condition	25°C/60% RH 40°C/75% RH	30°C/65% RH 30°C/75% RH
Accuracy	± 0.2°C	± 2% RH
Uniformity	± 1°C	± 3% RH
Controller System	PLC BASED CONTROL SYSTEM (Make: Allen Bradley)

Chamber interior is fabricated of “Stainless Steel” with dull finish & Exterior is of G.I. Powder coated OR stainless steel: sSS304 or SS3016 according to the needs of client or user. The inner working chamber is water & vapour tight high-grade stainless steel. All seams are arc-welded & passivated for strength& durability.

Single Door with a “Viewing Window” (of Toughened Glass) for easy inspection & viewing the samples without disturbing the set environmental conditions of the chamber (by opening the door).

“Bullet feet” ensures easy mobility during installation & cleaning. Bullet feet are specially designed for longer life under heavy load with built in screwing adjustment “for accurate horizontal levelling of the chamber.

Inner working chamber is provided with a fluorescent tube for illuminating the chamber to view & inspect samples visually.

Heavy duty solid stainless steel duly electro polished perforated trays are provided, which are easy to clean, saves time & efforts while cleaning, & also height adjustable for convenience with the help of channels.(Height Adjustable every Half an inch).

Log data, Event data, Audit Trail data, E-Records & E-signatures, Graphical analysis& Data acquisition.

Standard Features:

"CE APPROVED" EQUIPMENT
ALLEN BRADLEY MAKE : PLC BASED CONTROL SYSTEM
ALLEN BRADLEY MAKE : HMI : LED 4.3" TOUCH SCREEN DISPLAY
PRINTING INTERFACE FACILITY
PC COMMUNICATION VIA ETHERNET
REFRIGERATION & HUMIDITY SYSTEM
MASTER & STAND BY IMPORTED SENSORS

Optional Accessories:

21 CFR PART 11 COMPLIANCE SOFTWARE : DAAS - V 4.0
SCANNER 4 + 4 (TEMP & RH) IMPORTED SENSORS
STAND BY REFRIGERATION SYSTEM & STAND BY HUMIDITY SYSTEM
EXTRA TRAY
HOOTER SYSTEM ( Security Alarm System)
GSM TECHNOLOGY ( SMS Alert System)
PASSWORD PROTECTED DOOR ACCESS SYSTEM

Stand By Steam Generator System

Stand By Steam Refrigeration System

Control System

Size
Model	MK*-20H	MK*-40H	MK*-60H	MK*-80H	MK*-100H	MK**-S100H
Capacity	200 Ltrs	400 Ltrs	600 Ltrs	800 Ltrs	1000 Ltrs	1000 Ltrs

Interior Dimension
Width in mm	600	700	700	700	800	800
Depth in mm	400	600	800	800	800	800
Height in mm	850	950	1100	1450	1600	1600

Exterior Dimension
Width in mm	760	860	860	860	960	960
Depth in mm	1030	1230	1430	1430	1430	1430
Height in mm	1450	1550	1700	2100	2210	2250

Power Supply
Power Supply	Single Phase, 230V 50Hz
Warranty	12 Months

Other Sizes also available as on requirement.

MATERIAL OF CONSCTUCTION (MOC)
	INSIDE MATERIAL	OUTSIDE MATERIAL	INSIDE FINISH	OUTSIDE FINISH
MK – 1	SS 304	G I Powder Coated	Matt Finish	G I Powder Coated
MK – 2	SS 304	SS 304	Matt Finish	Matt Finish
MK – 3	SS 316	SS 304	Matt Finish	Matt Finish

Note:

MK* :- MK1 / MK2 / MK3
MK**-S :- Split type Condensing Unit

A stability chamber, also known as a stability test chamber or environmental chamber, is a controlled environment used for testing and evaluating the stability of pharmaceuticals, food products, chemicals, and other substances under various environmental conditions. These chambers simulate and maintain specific temperature, humidity, and lighting conditions to assess the long-term stability and shelf life of products. Here is some information about stability chambers:

Stability chambers feature precise temperature control systems to maintain a constant temperature throughout the testing period. They often have a wide temperature range to simulate different climate conditions.

Humidity control is crucial for assessing the impact of moisture on product stability. Chambers are equipped with humidity control systems to regulate relative humidity levels.

Some stability chambers include lighting systems to simulate exposure to light, which is important for certain products that may be sensitive to light.

Proper airflow is maintained to ensure uniform temperature and humidity distribution within the chamber. Air circulation prevents localized variations that could affect the stability testing.

Advanced stability chambers are equipped with monitoring and control systems that allow real-time tracking of temperature, humidity, and other relevant parameters., Alarms are often included to alert users to deviations from set conditions.

Stability testing of drugs to ensure efficacy and safety over time., Regulatory compliance testing to meet pharmaceutical industry standards.

Evaluating the shelf life and stability of food products., Testing the impact of environmental conditions on food quality.

Assessing the stability of chemicals under various conditions., Regulatory compliance testing for chemical products.

The International Council for Harmonisation of Technical Requirements for Pharmaceuticals for Human Use (ICH) provides guidelines for stability testing in the pharmaceutical industry.

Stability testing is often a regulatory requirement for product approval in various industries.

Stability chambers need to be regularly calibrated to ensure the accuracy of temperature and humidity control.

Routine maintenance checks are essential to identify and address any issues that may affect the performance of the chamber.

Stability chambers play a crucial role in ensuring the quality and safety of products by providing valuable data on how they respond to different environmental conditions over time. These chambers contribute significantly to research and development processes, regulatory compliance, and quality assurance in various industries.

No of Trays

Perforated Type

Tray spacing

Every 1/2" Adjustable
